Mechanical Cabinet Dual Thermostat Temperature Controller Thermoregulator ZR011

Name: Mechanical Cabinet Dual Thermostat Temperature Controller Thermoregulator ZR011
Brand: Kampa
Price: 2.00 USD

Wholesale Mechanical Cabinet Dual Thermostat Temperature Controller Thermoregulator ZR011 from china suppliers

Place of Origin : Zhejiang, China

Brand Name : Kampa

Model Number : ZR011

Product name : Hot sale Clip fixing small industry thermostat

Sensor element : thermostatic bimetal

Contact type : snap-action contact

Service life : >100, 000 cycles

Dimensions : 67 * 50 * 46mm

Mounting : clip for 35mm DIN rail, EN60715

Casing : plastic according to UL94 V-0. light grey

Protection : IP20

Operating/Storage temperature : -45 to +80°C (-49 to +176°F)

Approvals : CE

Packaging Details : standard export cartons OR as customers' needs

Port : Ningbo/Shanghai

Supply Ability : 100000 Piece/Pieces per Month

MOQ : 10 Pieces

Price : $2.00 - $5.00/Pieces

Contact Now

Mechanical Cabinet Dual Thermostat Temperature Controller Thermoregulator ZR011

1.Features

Dual thermostat ZR011
1)NO and NC in one casing
2)Separate adjustable temperatures
3)High switching capacity
4)Terminals easily accessible

5) Hot sale Clip fixing

2.Technical Data

Switch temperature difference	7K (± 4K tolerance)
Sensor element	thermostatic bimetal
Contact type	snap-action contact
Service life	> 100 000 cycles
Max. switching capacity	250VAC, 10 (2) A
	120VAC, 15 (2) A
	DC 30W
Connection	4-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail, EN60715
Casing	plastic according to UL94 V-0. light grey
Dimensions	67 x 50 x 46mm
Weight	approx. 90g
Fitting position	variable
Operating/Storage temperature	-45 to +80°C (-49 to +176°F)
Operating / Storage humidity	max. 90 % RH (non-condensing)
Protection type	IP20
Approvals	CE

3.Product display

Mechanical Cabinet Dual Thermostat Temperature Controller Thermoregulator ZR011

4.Dimensions

Mechanical Cabinet Dual Thermostat Temperature Controller Thermoregulator ZR011

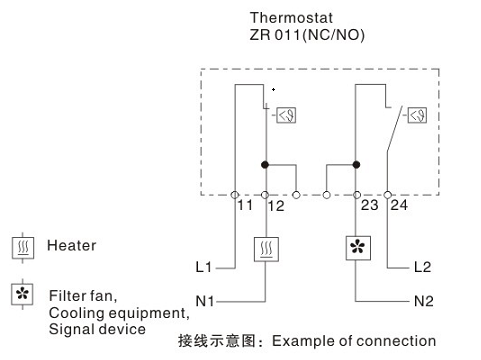

5.Example of connection

Mechanical Cabinet Dual Thermostat Temperature Controller Thermoregulator ZR011

6.Art. NO.

Art. No.	Setting range	Setting range	Setting range	Setting range
01172.0-0	contact breaker, normally closed	0 to +60°C	contact maker, normally open	0 to +60°C
01172.0-01	contact breaker, normally closed	+32 to +140°F	contact maker, normally open	+32 to +140°F
01175.0-00	contact breaker, normally closed	-10 to +50°C	contact maker, normally open	+20 to +80°C
01175.0-01	contact breaker, normally closed	+14 to +122°F	contact maker, normally open	+68 to +176 °F
01176.0-00*	contact maker, normally open	0 to +60°C	contact maker, normally open	0 to +60°C
01176.0-01*	contact maker, normally open	+32 to +140°F	contact maker, normally open	+32 to +140°F
*For regulating heat exchangers and fans (e.g LE 019) and as an alarm contact for monitoring the interior temperature of electronic enclosures.
